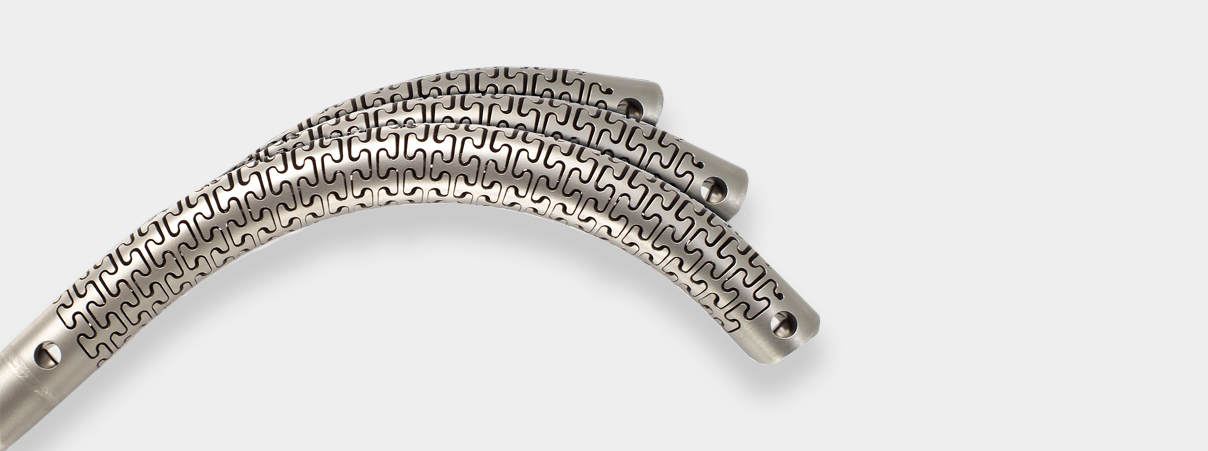

Customized Flexibility in a Wide Range of Sizes
Avalign designs its proprietary Flex Technology to support a wide range of applications. From off-the-shelf shafts to standard or custom design solutions built-to-order, you can easily source flexible shafts to meet your needs. Our flex shafts adhere to the same high standards of quality and design that you expect from Avalign’s innovative Flex Technology, and our dedicated service teams assist at every point along the way to shorten lead times and ensure on-time delivery.
Learn how Avalign can help you customize flexible shafts efficiently. Find an Avalign sales representative for more information and custom quotes.
Off-the-Shelf Flex Shafts
| Material | OD | ID | UTS | Bend Angle | Part Number |
| 17-4 | .188" | .075" | 41 in-lb | 60° | 04-8119- 0188-01 |
| 17-4 | .250" | .090" | 97 in-lb | 90° | 04-8119- 0250-01 |
| 17-4 | .250" | .090" | 97 in-lb | 60° | 04-8119- 0250-02 |
| 17-4 | .281" | .125" | 134 in-lb | 90° | 04-8119- 0281-01 |
| 17-4 | .281" | .125" | 134 in-lb | 60° | 04-8119- 0281-02 |
OD - Outer Diameter, ID - Inner Diameter, UTS - Ultimate Torque Strength Estimate
Standard & Custom Design Flex Shafts
Avalign’s engineering team will work with you based on your application to
identify the best solution. Standard flex shaft solutions have design features
that range from: OD: Ø0.125” to Ø0.375” (Ø3mm to Ø8mm), Dynamic Bend Angle: 30°
to 90°, and Ultimate Torque Strength: 12in·lb-330 in·lb (0.3 Nm to 14Nm). Custom
flex shafts can also be engineered per your specific performance requirements
and surgical applications.
